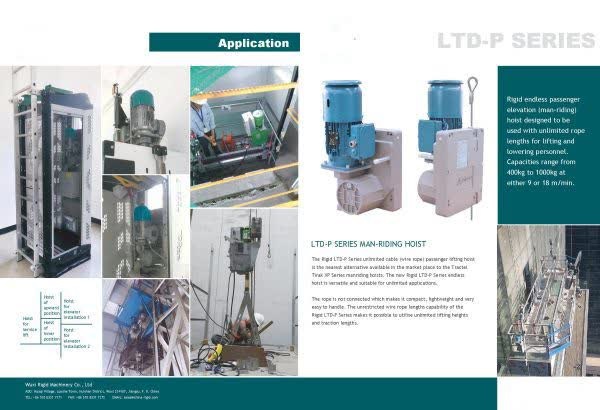

LTD-P Traction hoist

Pro LTD-P Series hoists are designed to be used with unlimited rope lengths for lifting, for use on all type of suspended access, CE approved. The working height arrange from 10m to 400m, and higher. Capacities arrange from 500 to 1000kg at 9 or 18m/min

Categories
FacebookXPinterestLinkedinTelegramEmail


Model

 Working load limit kg Speed m/min Wire rope φmm Power kW Net Weight kg

IP class

 Overall Dimensions (mm) (H×W×D)
LTD50-8P9 500 9



8.3

 1.1 47









IP55





260×300×245
LTD50-8P18 500 18 2 48
LTD63-8P9 600 9 1.5 47
LTD63-8P18 600 18 2.2 50
LTD80-9P9 800 9

9.1

 1.8 48

260×300×245
LTD80-9P18 800 18 3 55
LTD100-10P9 1000 9

10.2

 2.2 50
LTD100-10P18 1000 18 4 60 260×300×650
A. Voltage and frequency are available upon request.
B. Working Temperature arrange -20℃ to +50℃
C. When the electric current frequency is 60HZ, the lifting speed will be increased by 20% and the load should be reduced by 20%.
